A lot of components are required to make an electronic circuit and it depends on the type of component that will be installed in it. Such as register capacitor led transistor diode etc. And there are also some equipment such as power supply signal generator multi-meter etc. So get information about all these, only then you will be able to make electronic circuits. So in today's post, you will be given complete information about basic electronic components and equipment of electronic.
Names Of Important Electronic Components
Electronic components are divided into a few categories. Active electronic components, passive electronic components and Electromechanical components but here we will tell you all the components separately one by one so that you can know about each component and know more about it.
INTEGRATED CIRCUITS (ICS)
 |
| Integrated Circuts - IC |
An integrated circuit is a single device or chip made of
semiconductor material. And mostly silicon is used for this. This integrated
circuit is used in almost all electronic devices such as tv radio mobile phone
laptop router modem etc. Integrated circuits are also divided into two
categories: analog integrated circuit and digital integrated circuit. More
information about this is given in another of our posts, whose link is given
below.
MICROCONTROLLER
In modern terminology, a Microcontroller is a small computer that is made from an integrated circuit. In the microcontroller, we get to see ram, cpu, input / output etc. It is a programmable component that can be used in many electronic devices such as a small computer.
RESISTORS
 |
| Register |

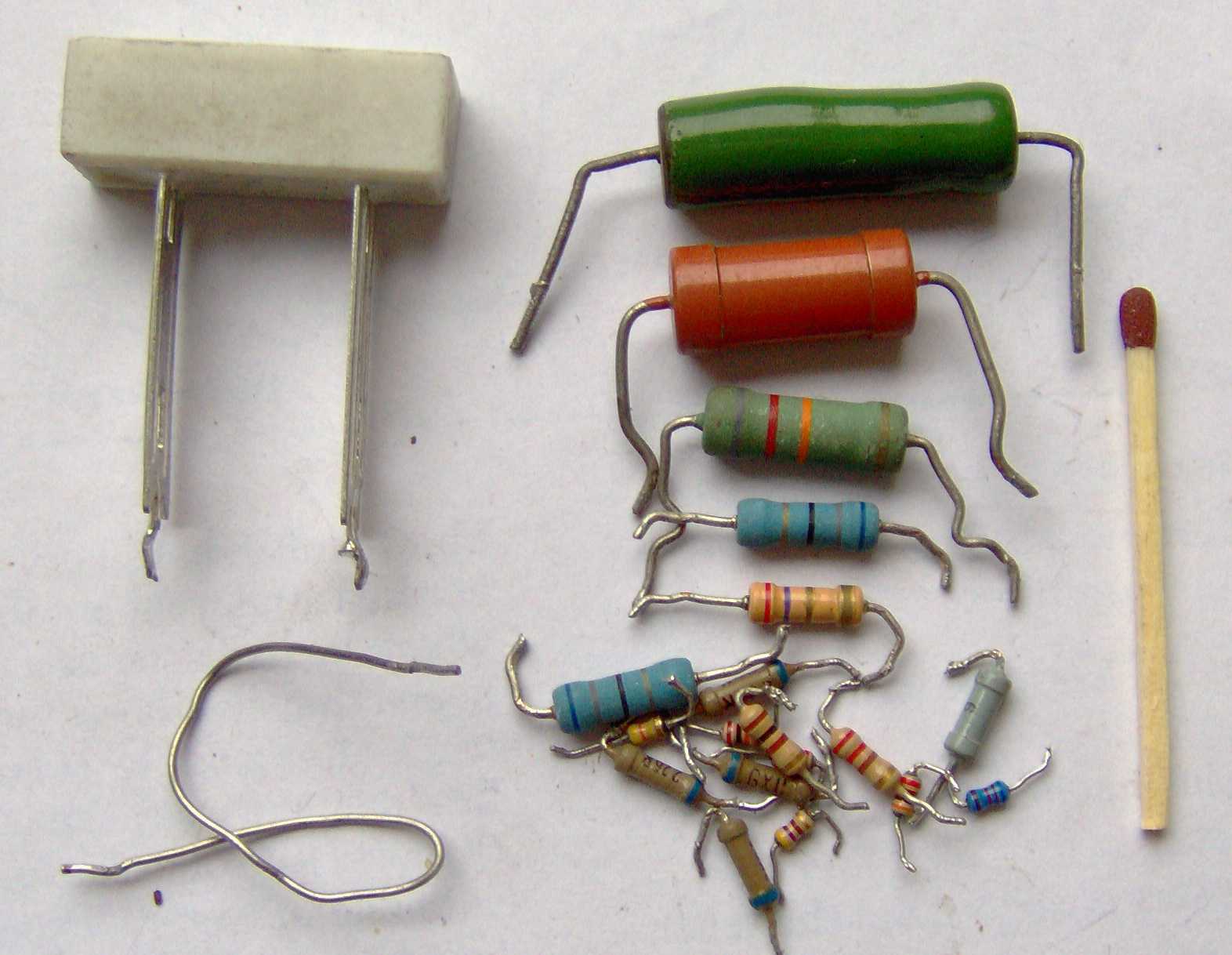

Resistor is an electrical component . And in electronic circuits, resistors are used to prevent or reduce current flow. There are many types of registers, depending on their working, they are placed in different categories. There are mainly 2 types of this: - fixed resistor, variable resistor. More information about this is given in our another post, whose link is given below.
What Are The Types Of Resistors?
DIODES
The diode is a non-linear semiconductor device as it allows current to move in only one direction. The diode has two terminals called anode and cathode. Below you are given its electric symbol.
 |
| Diodes |
A common PN diodes is used in circuits that convert ac supply to dc. And you must have heard about led light emitting diode. Which is a semiconductor device and leaves the light on after activating.
CAPACITORS
 |
| Capacitor |
Capacitor is an electronic component that is used in
almost all circuits such as every radio television etc. Electric charge is
stored in capacitors. Capacitors are two conductors normally made of two
plates. And between these two plates, a dye electric material is placed, which
separates it. When the capacitor is combined with a power source, it stores the
electric charge. And both the plates inside it serve to store this charge, one
of which has positive charge on the plate and negative charge on the other.
More information about this is given in another of our posts, whose link is
given below. .
What is capacitor type of capacitor
INDUCTOR
 |
| Inductor |
For example, the capacitor stores the electric field as energy. In the same way inductors store magnetic field as energy. An inductor is a wire made in the form of a coil. It is used in ac equipment such as filters, chokes, tuned circuits etc.
SWITCHES
We use the switch to start and stop any circuit or say on or off. There are many types of switches, depending on their function, wants to be placed in these different categories. Some switches are analog and some switches are digital. You usually see a simple switch in homes.
DC POWER SUPPLY
Dc power supply is a very important part of electronic
circuits. Most electronics components and circuits are powered by dc power
supplies, so dc power supplies have a lot of importance. There are many
electronic appliances that provide dc supply such as ac - to - dc power
supplies, linear regulators, switching mode power supply etc.
Dc power supply 5v to 12v is used in electronic circuits. Because almost all components work above this range.
What is Electrical Wiring and type of Electrical Wiring fitting
BATTERIES
A battery is a device that converts chemical energy into electrical energy and the battery is used in mobile phone, laptop watch etc. Apart from this, it is also used in many other testing equipment. You have often seen in watches that inside it we use a cell which supplies 1.5v and this is the cell that we use in the tv remote. Where we put two cells and supply 3v to our tv remote.
 |
| Batteries |
Batteries are divided into different ranges depending on their voltage. As you can see in the photo above, here we have shown three types of batteries, one of which is 9 volts, one is 1.5 volts and one is 12 volts. Is. They are used on the basis of their voltage.
Display devices
Talking about electronic equipment, display is used in many devices and mainly two types of display are used in electronic equipment.
16 x 2 LCD

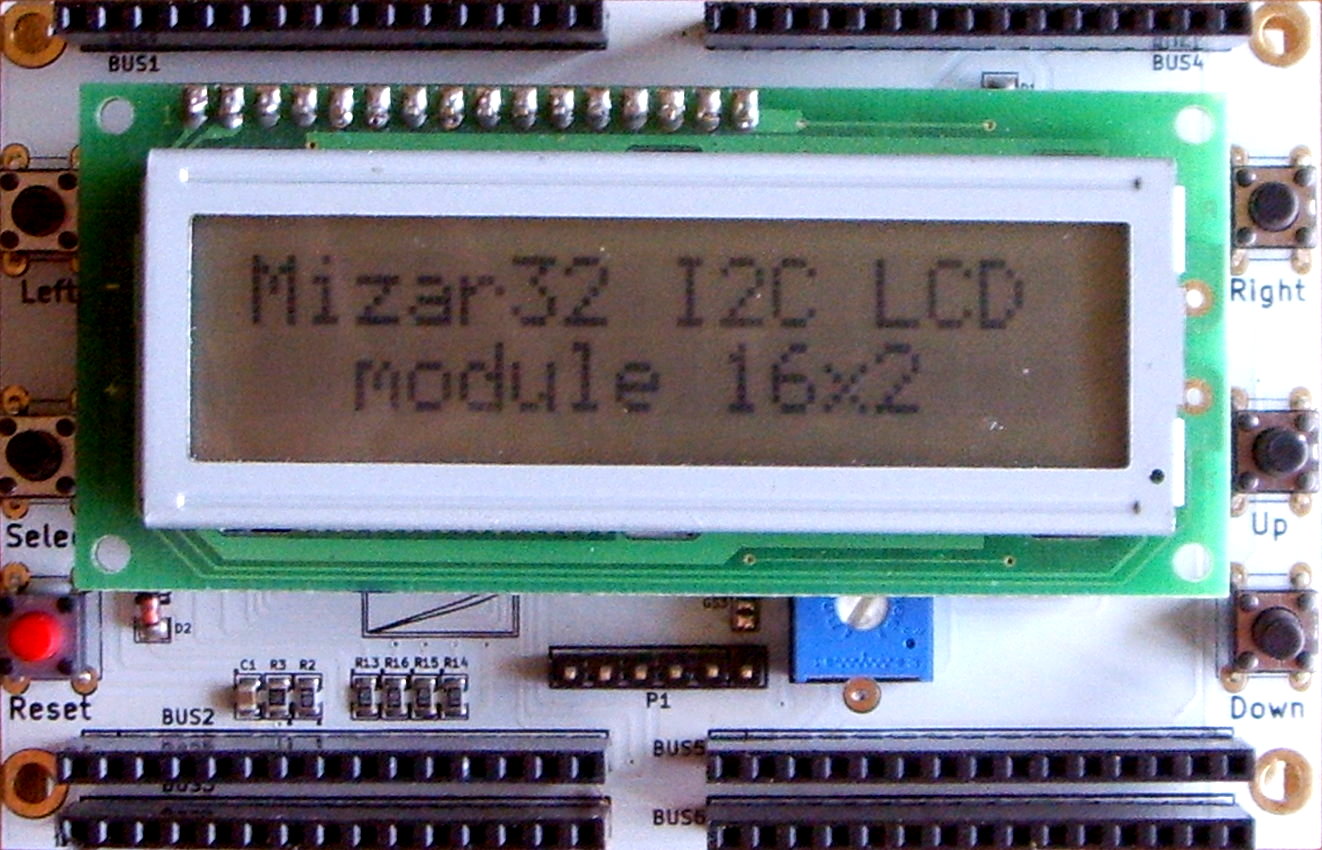

You will find this display in a device like calculator. It is an alpha - numeric display which consists of two rows and 16 columns and can show maximum 32 characters on this display.
7 – Segment Display

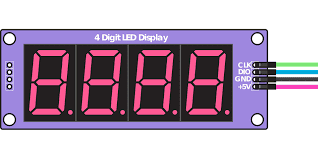

You will also see this display in many electronic devices such as clock, information systems etc. This display is used where we need a number. Or alphabet is required.
Multimeter
Voltmeter, ammeter and ohmmeter were first used to measure voltage current and resistance, but later it was renamed as multimeter and inside it you can easily measure voltage current resistance. But nowadays more advanced multimeters have come in, inside which you can also check the transistor.
Multimeter can measure both ac and dc supplies and today
multimeters are of two types digital and analog but in today's time digital
multimeter is used very much because it can measure any component very well.
What Is Wire Color Code In Electrical Fittings ?
Apart from this, there are many other electronic
components, but the components that are most important and most used, we have
told you here. Here you are told about resistor, capacitor, microcontroller,
inductor, transformer, battery, fuse, diode / led (light emitting diode),
transistors, integrated circuit, relays, switches, motors, circuit breakers if
you have any other and if you want to know about the component then comment
below and ask.
